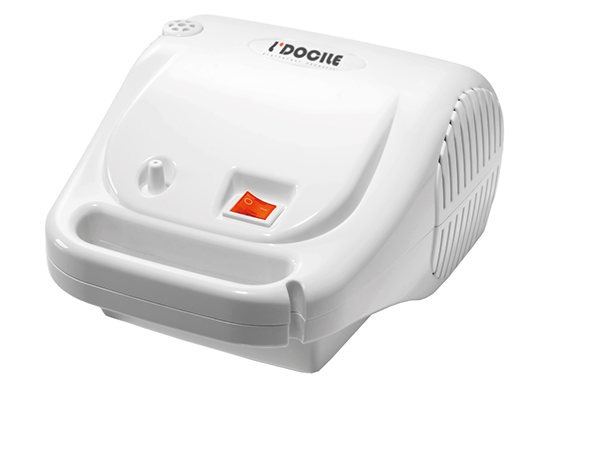

Nebulizer LDNB2320

Powerful Performance & Silent. Efficient delivery of the drug. Particles as fine as 5 um MMD, assuring optimum absorption even in the narrow branches of the lower airways. Lightweight, compact design and handy carrying case.

TECHNICAL SPECIFICATION

MODEL

LDNB2320

ELECTRICITY SUPPLY

220V AC, 50Hz

WEIGHT

1.40 Kg

SIZE

(H) 97 x (L) 220 x (W) 163 mm

NEBULIZER CHAMBER CAPACITY

8 ml max.

NEBULIZATION RATE

0.2 ml/min

PARTICLE SIZE

0.3 to 6 microns

NOISE LEVEL

below 65dBA

MAXIMUM PRESSURE

43.5psi

MAXIMUM FLOW RATE

8 -10 L

OPERATING PRESSURE RATE

11.5 to 16 psi

MODE OF OPERATION

intermittent use 30 minutes ON / 30 minutes OFF

DEVICE LIFE CYCLE

5 years

MAIN CHARACTERISTICS

Class II Device (double safety insulation)

Type B Device (device with specific protection against electrical hazards)

Device not protected against water penetration

Device should not be used around flammable substances, or in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide

Device not suitable for use in anesthesia or pulmonary ventilation systems
